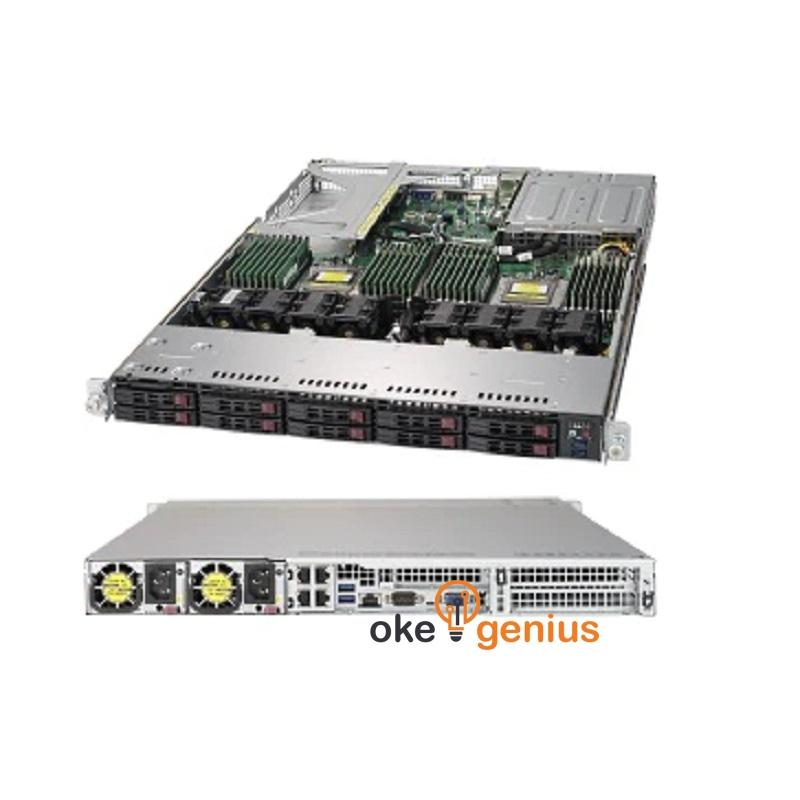

AS -1123US-TR4 (2X Rome 7402, 2TB Memory, 11.52 SSD)
1.Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
2.4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
3.Expansion slots:
2 PCI-E x16 (FH / 9.5"L) slots
2 PCI-E x8 slots (1LP, 1 internal LP)
4.Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
key (SFT-OOB-LIC) included
for OOB BIOS management
5.Quad Gigabit LAN ports via Intel i350AM4
6.Drive Bays:
10 hot-swap 2.5" SATA3 by default
or 8 SATA3 + 2 NVMe (optional)
or 8 SAS3 ports + 2 SATA3 (SAS Add-on card is optional)
| Spesifikasi | |
|---|---|
| Processor | Rome 7402 24C/48T 2.8G 128M x2 |
| Memory | 64GB DDR4-3200 2Rx4 (16Gb) ECC RDIMM x32 |
| Ssd | Samsung SM883 1.92TB SATA 6Gb/s V4 MLC 2.5Inch 7mm (3.6 DWPD) x6 |
| Raid Controller | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 (AOC-S3108L-H8iR) |
| Sas Int Cable | MINI SAS HD,12G,INT,60CM,30AWG (CBL-SAST-0593) x2 |
| Nic (Add On) | Standard Low-profile dual-port 10Gbase-T with NC-SI, Intel X550 (AOC-STGS-I2T-O) |
| Nic (Add On) | Standard LP 2-port 10G SFP+, Intel X710 (AOC-STGF-I2S-O) |
| Transciever Module | Supermicro 10G/1G Ethernet 10GBase-SR/SW 1000Base-SX Dual Rate SFP+ 850nm LC Transceiver (AOM-TSR-FS) x2 |
| SFT-DCMS-Single | Datacenter Management Package- consists of unified management of server Health monitoring, inventory management, power management, BIOS & firmware upgrades and provisioning, level 2 support. |
| Power Supplies | 1000W Redundant Power Supplies Titanium Level (96%+) (Full redundancy based on configuration and application load) |
| Warranty | Garansi sparepart server selama 3 (tiga) tahun dan masa retensi support system selama 1 (satu) tahun |
