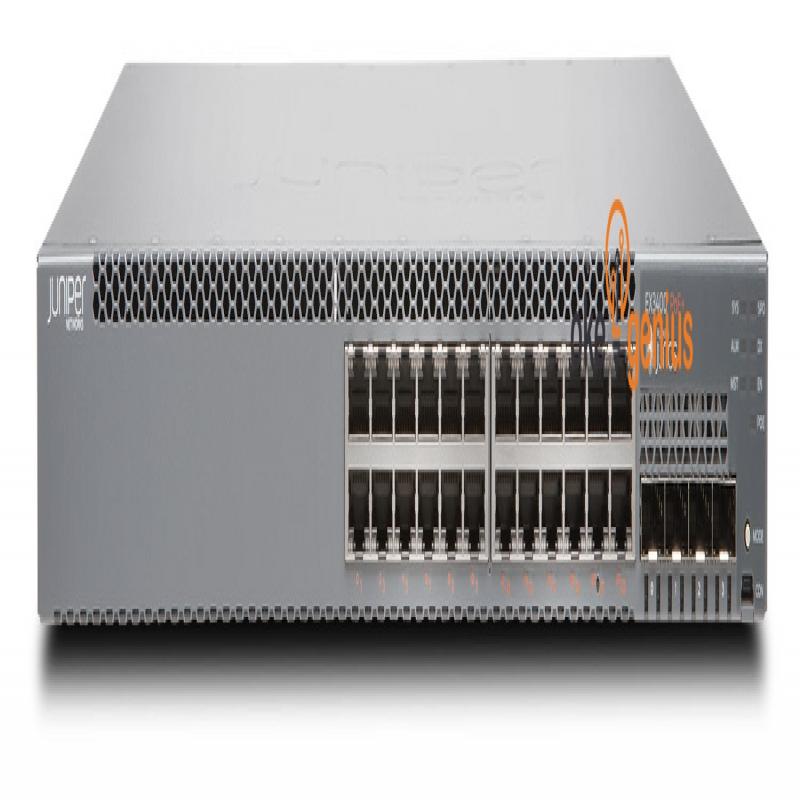

ETHERNET SWITCH EX3400-24P

IDR 65.263.200

Spesifikasi
Form factor

Fixed platform, Virtual Chassis configuration consisting of up to 10 switches, Junos Fusion Enterprise Satellite device

Dimensions (W x H x D)

17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm), 1 rack unit

Backplane speed

160 Gbps

Data rate

EX3400-24P/24T/24T-DC: 288 Gbps

Throughput

EX3400-24P/24T/24T-DC: 214 Mpps (wire speed)

40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities

2

100GBASE C form-factor pluggable transceiver (CFP) port densities

N/A

Resiliency

Redundant, field-replaceable power supplies, Redundant trunk groups that provide port redundancy and simplify switch configuration

Operating system

Junos OS

Traffic monitoring

sFlow

Quality-of-service (QoS) queues/port

8 unicast/4 multicast

MAC addresses

32

Jumbo frames

9216 bytes

IPv4 unicast/multicast routes

36,000/4,000

IPv6 unicast/multicast routes

18,000/2,000

Number of VLANs

4.096

ARP entries

16

Ports

24-port 10/100/1000 BASE-T PoE+ , 4 x 1/10G SFP/SFP+, 2 2x 40G QSFP+, redundant fans, front-to-back airflow, 1 AC PSU JPSU-600-AC-AFO included (optics sold separately)

Warranty 1 Years
