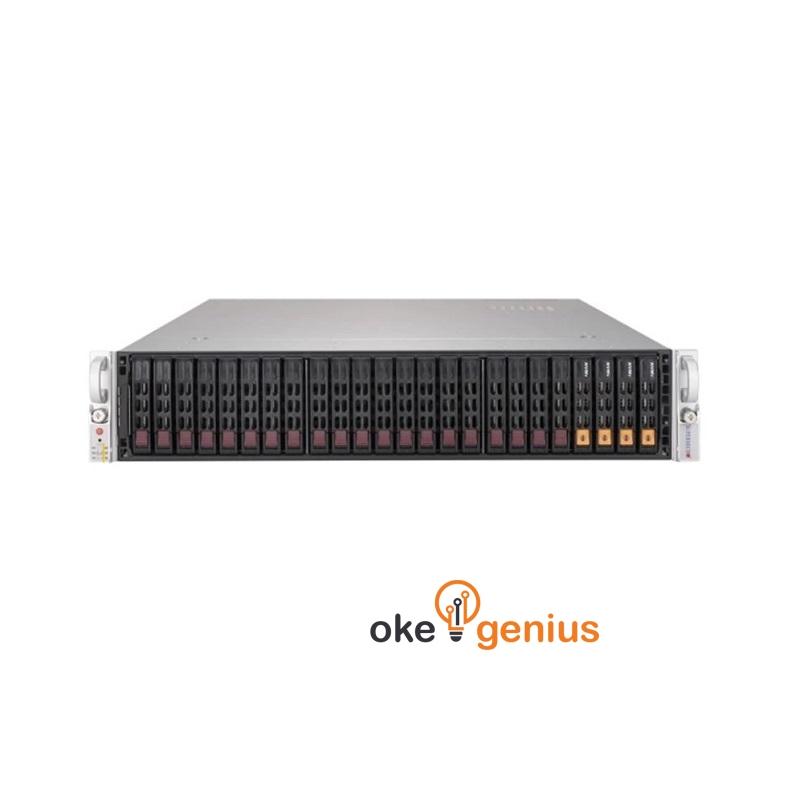

SuperServer 2049U-TR4 (4x P4X-CLX6230-SRF8W, 16x 32GB DDR4, 4x 960GB, SATA)
| Spesifikasi | |
|---|---|
| Software | 1x SFT-OOB-UC IPMI Controller Advanced Management Features e.g, BIOS & Firmware upgrade and provisioning |
| Rackmount | 2U |
| Processor | 4x P4X-CLX6230-SRF8W CLX-SP 6230 20C/40T 2.1G 27.5M 10.4GT 3UPI |
| Memory | 16x MFM-DR4321L-CLO3-FR26 32GB DDR4-2666 2RX4 ECC RDIMM |
| Storage | 4x HDS-I2TO-SSDSC2KB960G8 Intel D3-S4510 960GB, SATA 6GB/s, 3D, TLC 2.5", 7.0mm, up to 2DWPD |
| Network & Data Interconnection | 1x AOC-STG-l4S 4-port 10Gbe Standard LP with SFP+, Intel XL710-AM1 |
| Power & fan | 1600W redundant Power Supplies Titanium Level (96%), 4x 8cm Heavy duty Fans |
| Support Warranty | 1x EWCSC Warranty 3 Yrs LABOR and 3 Yrs PARTS |
| Key Features | 8 DDR4 DIMM Slots, up to 6 TB , Up to 11 PCI-E 3.0 slots , Hot-Swap NVMe Bays support iva optional NVMe AOC , Flexible Connectivity Options , Quad Socket P (LGA 3467) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake) , 48 DIMMs; up to 12TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM Supports Intel Optane DCPMM , 5 PCI-E 3.0 x8 slots , 6 PCI-E 3.0 x16 slots , 4 GbE LAN ports via AOC-2UR66-i4G , 1 Dedicated IPMI LAN Port , 24 Hot-swap 2.5" SAS3/SATA3 drive bays supported via optional Add-on RAID controller card; 4 Hybrid ports with NVMe support via extra AOC , Optional up to 2 Active Cooling GPUs |
