| Type |

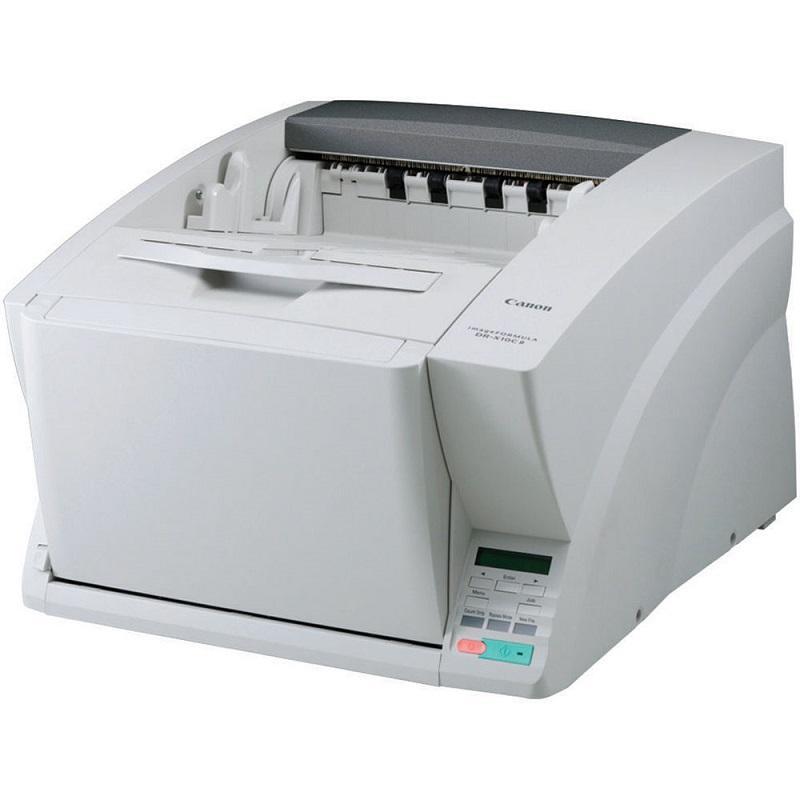

A3 Desktop Type Sheet Fed Scanner |
| Scanning sensor unit |
CMOS CIS 3 Line Sensor |
| Optical resolution |
600dpi |
| Light source |
RGB LED |
| Scanning side |
Front / Back / Duplex |
| Interface |
Dual Interface (High speed USB 2.0 & SCS1-3)Optional Kofax Hardware VRS (CGA) Card |
| Dimensions (WxDxH) |
Tray Closed: 528 x 563 x 375 mmTray Opened: 528 x 861 x 432 mm |
| Weight |
Approx. 39kg |
| Power requirements |
AC220 - 240V (50/60Hz) |
| Power consumption |
Scanning: 125W, Sleep mode: 4.5W (AC 220-240V), Power Turned Off: 0W |
| Operating environment |
10 - 32.5°C (50 - 90.5°F), Humidity: 20 - 80% RH |
| Environmental compliance |
RoHS and ENERGY STAR |
| Black and White |
130ppm / 260ipm - Landscape speed |
| Color |
130ppm / 260ipm - Landscape speed |
| Output resolution |
100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400 dpi, 600 x 600dpi |
| Colour mode |
Black and White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour |
| Suggested Daily Duty Cycle |
Approx: 60,000 scans/day |
| Width |
50.8 - 305mm |
| Length |
70 - 432mm |
| Thickness |
Automatic Feeding: 52 - 123gsm (0.06 - 0.15mm)Bypass Mode: 40 - 255gsm (0.05 - 0.30mm) |
| Long document mode |
3000mm max. (Selectable in MS Windows control panel) |
| Paper separation |
Retard Roller |
| Feeder capacity |
500 sheets(80g/m²)Selectable 500, 300, 100 sheets & MANUAL/ BYPASS Feeding ModeOffset Feeding with lockable side guides |
| Others |
Auto Page Size Detection, Deskew, Skip Blank Page, Text Oriantation Recognition, Colour Dropout (RGB/Custom)/Enhancement (RGB/Custom), Moire Reduction, Prevent Bleed Through/Remove Background, Punch Hole Removal, MultiStreamâ„¢, Auto Power On/Off (via USB), Rapid Recovery System, Ultrasonic Double Feed Detection (sensors independently adjustable), Manual/Baypass Feeding, Active Separation Torque Control, Double Feed Retry Mechanism, Job/User Registration Buttons, Verify Scan/Count Only Mode, Buzzer Alarm, Selectable Background (White/Black) |
| Windows |
ISIS /TWAIN Driver (Windows 2000 / XP Pro / XP Home / VISTA / 7 / 8 / 10)CapturePerfect |
| Warranty |
3 Tahun |
