| Type |

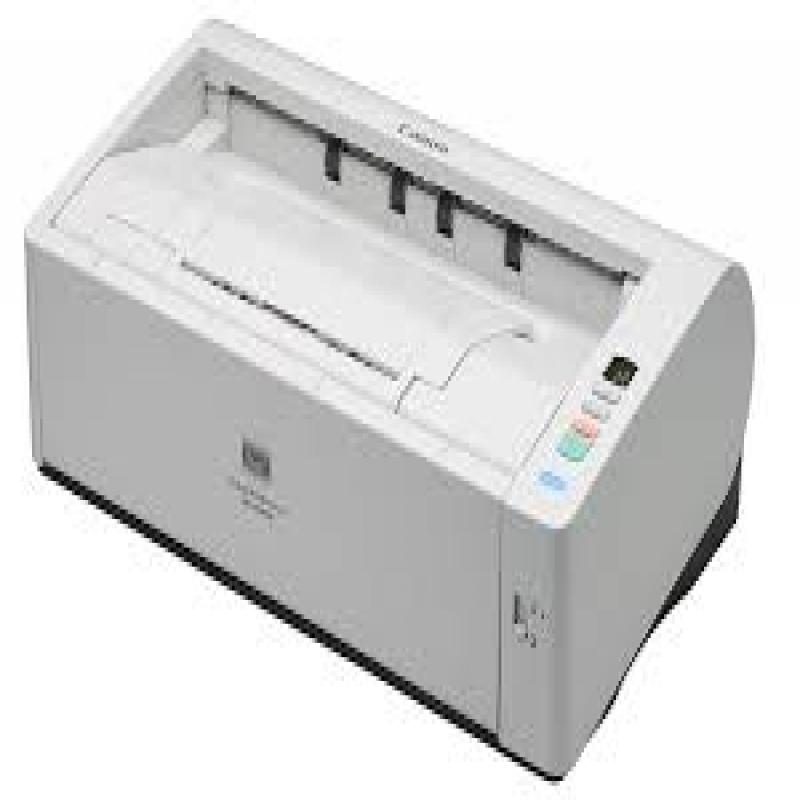

A3 Desktop Type Sheet Fed Scanner |
| Scanning sensor unit |
CMOS CIS 1 Line Sensor |
| Optical resolution |
600dpi |
| Light source |
RGB LED |
| Scanning side |
Front/Back/Duplex |
| Interface |
USB 2.0 (USB 3.0 compatible) |
| Dimensions (WxDxH) |
Tray Closed: 424 x 246 x 120 mmTray Opened: 424 x 440 x 210 mm |
| Weight |
Approx. 6.1kg |
| Power requirements |
AC100-240V (50/60Hz) |
| Power consumption |
Scanning: 32.5W or less, Sleep mode: 2.5W or les, Power turned off: 0.5W or less |
| Operating environment |
10 - 32.5 °C (50 - 90.5 °F), Humidity: 20 - 80% RH |
| Environmental compliance |
RoHS and ENERGY STAR |
| Black and White |
60ppm / 120ipm - Landscape speed |
| Colour |
60ppm / 120ipm - Landscape speed |
| Output resolution |
100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi |
| Colour mode |
Binary: Black & White, Error Diffusion, Advanced Text Enhancement I, Advanced Text Enhancement II, Auto Colour Detection, 8-bit Greyscale:(256-Level), 24-bit colour |
| Suggested Daily Duty Cycle |
Approx. 7,500 scans/day |
| Width |
50.8 - 300mm |
| Length |
70 - 432mm |
| Thickness |
U-turn: 0.04 - 0.15mm (27 - 128g/m²) Straight Through: 0.04 - 0.3mm (27 - 255g/m²) |
| Long document mode |
3000mm max. (Supported by Straight Feeding) |
| Card scanning |
86 x 54 x 1.4mm (Embossed card scanning is supported) |
| Paper separation |
Retard Roller and Pre-separation method |
| Feeder capacity |
80 Sheets (A4, 80g/m²) |
| Others |
Automatic Page Size Detection, Deskew, 3- Dimentional Colour Correction, Colour Dropout (RGB), Auto Colour Detection, Text Enhancement, MultiStream, Preset Gamma Curve, Prescan, Patch Code, Image Rotation, Skip Blank Page, Folio Mode, Scan Area Setting, Text Orientation, Edge Enhancement, Moire Removal, Prevent Bleed Through/Remove Background, Character Emphasis, Background Smoothing, Shadow Removal, Double Feed Release (DFR), Double Feed Detection (Ultrasonic Sensor / By Length) |
| Windows |
ISIS / TWAIN Driver (Microsoft Windows XP Pro / XP Home / VISTA / 7 / 8 / 8.1 / 10 / Server 2008 / Server 2012) CaptureOnTouch Pro CapturePerfect Nuance eCopy PDF Pro Office Kofax VRS |
| Warranty |
3 Tahun |
