| Type |

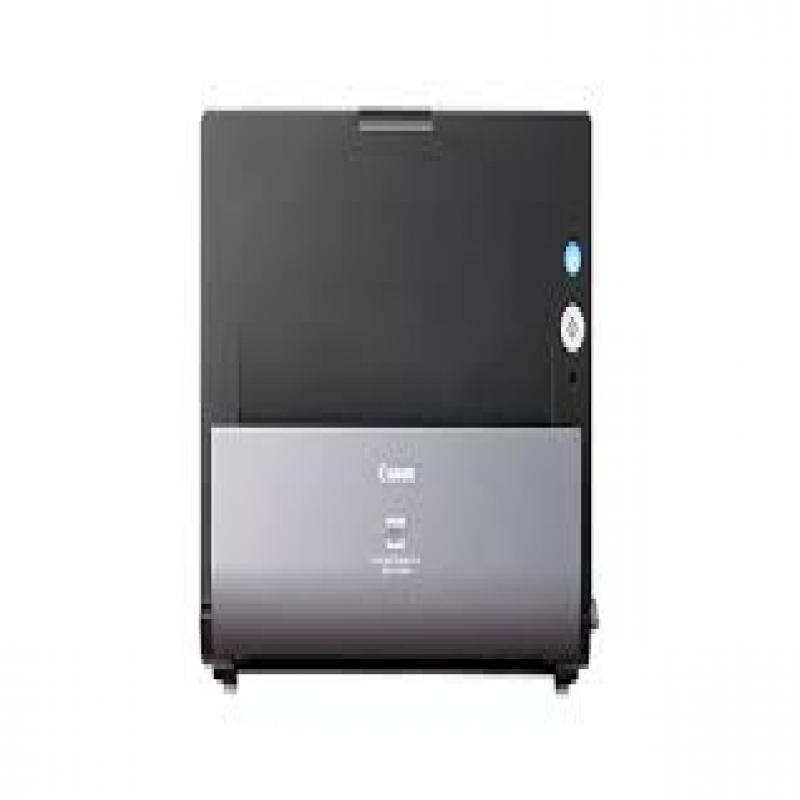

Desktop Type Sheet Fed Scanner |
| Scanning sensor unit |
CMOS CIS 1 Line Sensor |
| Optical resolution |
600dpi |
| Light source |
RGB LED |
| Scanning side |
Simples / Duplex / Folio / Skip Blank Page |
| Interface |
High speed USB 2.0Wi-Fi (Windows, iOS, Android) |
| Dimensions (WxDxH) |
Tray Closed : 300 x 156 x 220 mmTray Opened : 300 x 235 x 339 mm |
| Weight |
Approx. 2.8kg |
| Power requirements |
AC100 - 240V (50/60Hz) |
| Power consumption |
Scanning: 12.8W or less, Sleep mode: 1.9W or less, Power tuned off: 0.5W or less |
| Operating environment |
10 - 32.5 �C (50 - 90.5 �F), Humidity: 20 - 80% RH |
| Environmental compliance |
RoHS and ENERGY STAR |
| Connection mode |
Access Point Mode and Station Mode |
| Wi-Fi Security |
Authentication method: Open, Shared, WPA (PSK), WPA2 (PSK)Encryption method: WEP(64/128), TKIP/AES |
| Data Rates |
IEEE802.11b: Max 11 MbpsIEEE802.11g: Max 54 MbpsIEEE802.11n: Max 300Mbps |
| Black and White |
25ppm/50ipm |
| Colour |
25ppm/50ipm |
| Output resolution |
150dpi, 200dpi, 300dpi, 400dpi, 600dpiAuto Resolution Setting |
| Colour mode |
Detect AutomaticallyBlack and WhiteError DiffusionAdvanced Text Enhancement IAdvanced Text Enhancement II (Windows only)256-Level Grayscale24-bit Colour |
| Daily duty cyle |
Approx 1,500 scans/day |
| Width |
J-Path: 50.8 - 216mm Straight-Path: 50.8 - 216mm |
| Length |
J-Path: 70 - 356mm Straight-Path: 53.9 - 356mm |
| Thickness |
J-Path: 0.06 - 0.15mm (52 - 128g/m�) Straight-Path: 0.05 - 0.25mm (40 - 209g/m�) |
| Long document mode |
Straight-Path : 3000mm max. |
| Card scanning |
Straight-Path : 53.9 x 85.5 x 0.76mm (Embossed card is supported) |
| Paper separation |
Retard Roller Method (Reversing Seperator Roller) |
| Feeder capacity |
30 Sheets (80g/m�) |
| Image processing |
Background SmoothingPrevent Bleed Through/Remove BackgroundErase ShadowColour Dropout (RGB)Colour Enhancement (Red)Moire Reduction |
| Double Feed Detection |
Ultrasonic Sensor / By Length |
| Others |
Automatic Page Size DetectionMultiStreamPrescanText orientation recognitionDeskewImage RotationJob Setting |
| Windows |
ISIS /TWAIN Driver (Windows 2000/XP Pro/XP Home/Vista/7/8/10)CaptureOnTouchNuance eCopy PDF Pro OfficeNuance PaperPortNuance OmniPagePresto! BizCard ReaderPlug-in: Evernote, SharePoint, GoogleDocs, SugarSync, Dropbox, OneDriveEMC Captiva Cloud Runtime controls |
| Mac (USB) |
TWAIN DriverCaptureOnTouchPresto! PageManagerPresto! BizCard ReaderPlug-in: Evernote, SharePoint, GoogleDocs, SugarSync, Dropbox, OneDrive |
| Warranty |
3 Tahun |
