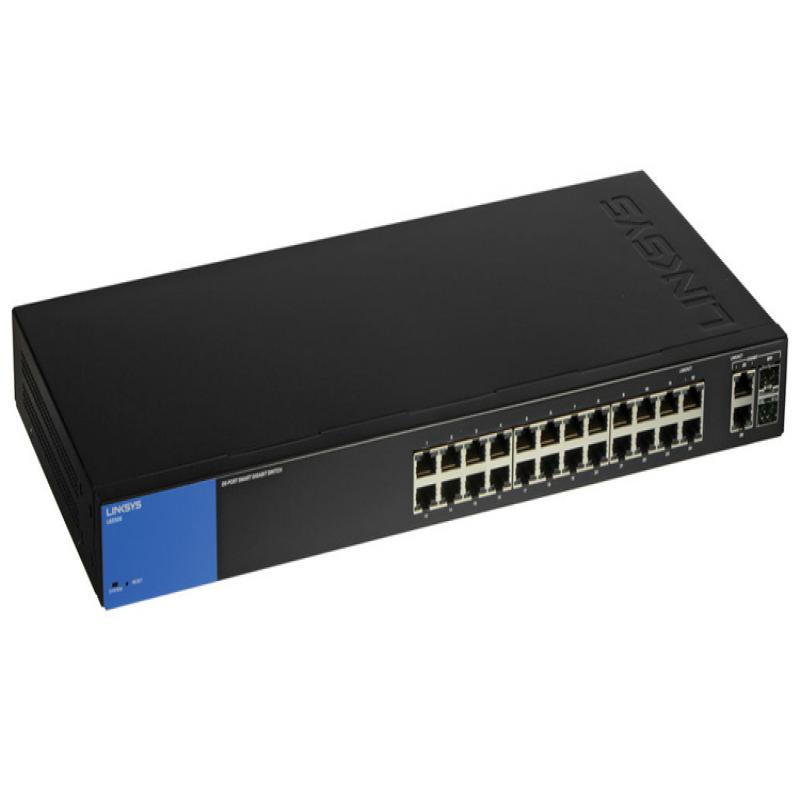

26-PORT BUSINESS SMART GIGABIT SWITCH; 2 COMBO MINI-GBIC(SFP) PORT LGS326-AP
| Spesifikasi | |
|---|---|
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1d, IEEE 802.1Q/p, IEEE 802.1X |
| Memory | 128MB� |
| Forwarding Rate: | 38.69 Mpps� |
| LEDs | System (blue), Link/Act (green)� |
| Switching Capacity: | 52 Gbps� |
| Jumbo Frame (FE, GE): | 9K� |
| MAC Address Table Size: | |
| Dimensions (LxWxH): | 440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)� |
| Power Consumption: | System Power Consumption without PoE+: 110V:17.62W�, 220V:17.72W |
| Port Mirroring | Traffic on multiple ports (up to four ports) can be mirrored to another port for analysis with a network analyzer |
| Security | 802.1x Radius Authentication, DHCP Snooping, IP-MAC Binding, Management Access Control, Port Security Supports Limited Dynamic Lock and Locked MAC Address |
| Features | IEEE 802.1d/w Spanning Tree Supports, Link Aggregation IEEE 802.3ad LACP, VLAN, Auto Voice VLAN, IGMP v1/v2/v3 Snooping, Head-of-Line Blocking Prevention Ready, Storm Control (Broadcast, Flooding, Multicast), Embeded RMON Supports |
| Interface | 16x Copper PE/GE RJ45 Ports, 2x Combo Ports (RJ45/SFP) |
| QoS | Class of Service (Port-based, 802.1p Priority-based, IPv4/v6 IP DSCP Based), Priority Levels (4 Hardware Queues), Scheduling (Priority Queuing and Weighted Roudn Robin) |
| Others | Management Interface (HTTP, HTTPS, Telnet, DHCP Client, System Log, PING, Dual Images, SNTP, Configuration Unload and Backup via HTTP/TFTP), SNMP (Version 1, Version 2c), Mac Address 8K |
| Weight | 2.424 kg |
| Warranty | Limited Lifetime |
