| Type |

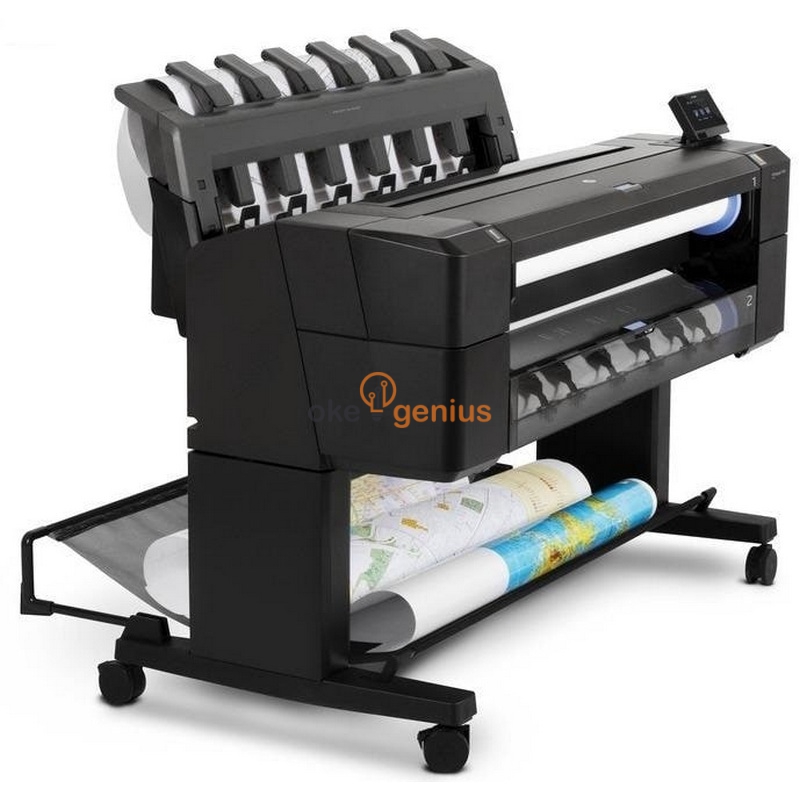

Hp Designjet T1530 Postscript |
| Part Number |
L2Y24A |
| Technology |
Hp Thermal Inkjet |
| Max Media Size/Paper Size |
914 X 1219 Mm (8.3 X 11 To 36 X 48 In) |
| Mono Print Speed |
21 Sec/Page On A1/D, 120 A1/D Prints Per Hour |
| Color Print Speed |
21 Sec/Page On A1/D, 120 A1/D Prints Per Hour |
| Print Resolution |
Up To 2400 X 1200 Optimized Dpi |
| Ink Types |
Dye-Based (C, G, M, Pk, Y); Pigment-Based (Mk) |
| Ink Colors |
6 Pl (C, M, Y, G, Pk); 9 Pl (Mk) |
| Printheads |
(C, G, M, Mk, Pk, Y) |
| Line Accuracy |
+/- 0.1% |
| Margins (Top X Bottom X Left X Right) |
Roll: 3 X 3 X 3 X 3 Mm (0.12 X 0.12 X 0.12 X 0.12 In); Sheet: 3 X 22 X 3 X 3 Mm (0.12 X 0.87 X 0.12 X 0.12 In) |
| Media Handling |
Input: Two Automatic Front-Loading Roll Feeds, Smart Roll Switching, Sheet Feed ; Output: Integrated Output Stacking Tray (From A4/A To Ao/E, With Up To 50 A1/D-Size Capacity), Media Bin, Automatic Cutter |
| Media Types |
Hp Bright White Inkjet Paper (914 Mm X 45.7 M (36 In X 150 Ft), Hp Heavyweight Coated Paper (914 Mm X 30.5 M (36 In X 100 Ft) ; Hp Universal Satin Photo Paper 914 Mm X 30.5 M (36 In X 100 Ft) |
| Media Size |
Rolls: 279 To 914 Mm (11 To 36 In); Sheets: 210 X 279 To 914 X 1219 Mm (8.3 X 11 To 36 X 48 In); Standard Sheets: A4, A3, A2, A1, A0 (A, B, C, D, E) |
| Memory |
96 Gb (File Processing) |
| Hard Disk |
500 Gb |
| Connectivity |
Gigabit Ethernet (1000 Base-T) |
| Power Consumption |
< 120 Watts (Printing), < 260 Watts (Maximum), < 4 Watts (< 7 Watts With Embedded Digital Front End) (Sleep), 0.1 Watts (Auto-Off), 0 Watts |
| Power Requirements |
Input Voltage (Auto Ranging) 100 To 240 Vac (+/- 10%), 50/60 Hz (+/- 3 Hz), 4.2 A Max (Peak Current) |
| Warranty |
One-Year Limited Hardware Warranty |
